G24 PL LED Lamp 5W: www.griled.com

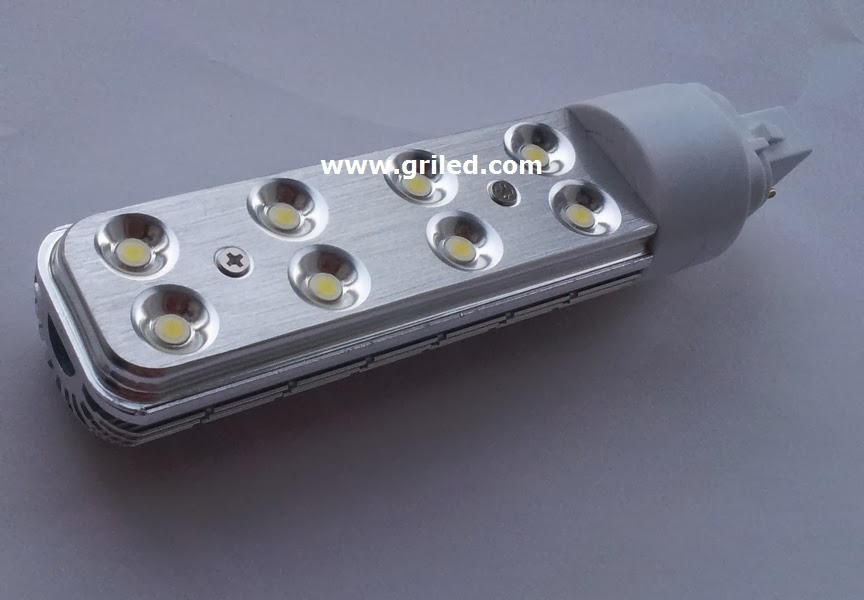

G24 PL LED Lamp 5W

Specification:

Model No: ECO-PL-5W

Power: 5W (Replace Philips 9W)

Led Chip: Taiwan Epistar 4pcs*1W

Lumen: 400lm

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White;

6000-7000K, Cool White

Beam Angle: 160 degree

Base Rotary Angle: 340 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

PF: >0.95 (Isolated Driver)

Diffuser Plate: All-aluminum reflective cup

Lamp Base: G23/G24/E27

Material: Aluminum+PC

Net Weight: 160g

Lamp Size: 114mm*40mm*40mm(G24) / 118mm*40mm*40mm(E27)

Package Size: L122mm*W41mm

Life Span: 40,000hrs

Warranty: 3 years

Features:

1. Each led chip with a all-aluminum reflective cup

2. Constant current isolated driver, no need to install ballast.

3. 50% energy saving: 5W replace Philips 9W, 7W replace 13W, 9W replace 18W

4. 340 degree rotary base: G23, G24 2 Pin/4 Pin, E27

5. Good heat dissipation performance with Chimney effect: Stretching aluminum lamp shell + heat sink structure + Hollow thermal design.Higher temperature, faster airiness.

Application: Home, Office, Supermarket, Hospital, Hotel,etc.

2013年11月11日星期一

Magnetic stand Rechargeable LED FloodLight 10W: www.griled.com

Model No.:	ECO-FL-10W-EMG-3H/6H/8H	Beam Angle:	120°
Wattage:	10W	IP Rate:	IP65
LED Source:	1*10W Epistar LED	Humidity:	10%-90%
Lumen Flux:	800-1000lm	Li-ion Battery:	7.4V, 4.4Ah/5.2Ah/8.8Ah
Working Voltage:	DC12V/24V	Charging Time:	5h/6h/8h
CCT:	2800-3500K;4000-5000K,5500-7000K	Working Time:	3h/6h/8h
CRI:	>70Ra	Lamp Size(mm):	L145W160H240/L215W185H285
Lamp Material:	Aluminum&Toughened Glass	Net Weight:	1.4kg/pc;2.6kg/pc
Adapter:	Input:AC100-240V 50/60Hz	Packaging Size(mm):	180180170mm
Adapter:	Output: 12VDC	Packaging Details:	12pcs/CTN
Storage Temp:	-25~50℃	CTN Size:	550370360mm/19kg
Operating Temp:	-25~50℃	Life Span:	>40000hours
Charging Temp:	0~40℃	Certificate:	CE RoHS

2013年10月28日星期一

Portable rechargeable LED flood light widely used for different places

Portable rechargeable led flood light is very versatile and durable. IP65 rated means it can work even rain outside. It’s perfectly used for maintenance work, emergency, camping, picnic, fishing, garden or any other places you need exceptional wide angle lighting.

Rechargeable led work light is small size, light weight and can be 2h,3h,6h,8h working time. With a detachable stand bracket and a soft grip handle, you can use it as a torch but much brighter than it. It comes with a 85-265V AC charge adapter & DC12V car charger.

Now it’s even widely used in rescuing the fire. It’s reported that Taiwan New Taipei City Fire Department has used new weapon to rescue fire: Weapon Portable rechargeable LED flood light 5W,10W, 20W, 30W

Rechargeable LED flood light can fix the shortcomings of the need for the generator, also fixes shortcomings of being easily damaged because of the collision. The weight of rechargeable LED flood light than the old searchlight or workstar. The rescue team said with the help of this Portable rechargeable led floodlight , they won’t be so worried about rescue scene.

2013年10月22日星期二

How to choose High Quality LED Tube?

From the LED Tube structure, most people can get the main factors which effects on the tube quality: LED chip and power supply. But there’s also another important factor: Aluminum PCB board.

1. LED chip: For led tube, most factories choose SMD led chips: SMD3528, SMD5050, SMD3014, SMD2835.

There's heat sink on the SMD2835 SMD3014 LED chips, but no heat sink on

SMD2835> SMD3014> SMD3528>SMD5050

SMD5050 led chips is worse than SMD3528 and harder to control the lumen decay.

Working hours suggestion:

LED SMD 3528 no more than 8 hours working continuously

LED SMD 5050 no more than 8 hours working continuously

LED SMD 3014 no more than 14 hours working continuously

LED SMD 2835 better heat dissipation than LED SMD 3014

Some choose Taiwan brand led chips and some choose China produced led chips. Then absolutely caused different prices, also different qualities.

2. LED Driver: It’s the heart of led lamps. Can be Isolated driver or non-isolated driver. Different qualities will cause 1.7-2.5USD cost differ.

3. Aluminum PCB board: much better heat dissipation effect than FR4 board. This is also an important factor on quality and price.

Ecosram LED Technology Limited high quality LED Tubes choose Taiwan brand SMD2835 LED chip, Isolated driver and Aluminum board: High quality and 3 years warranty, also excellent after-sales service.

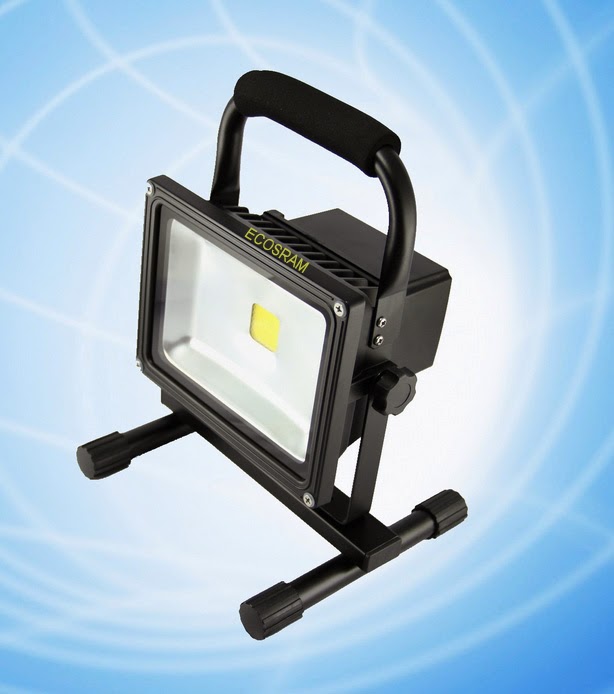

Portable Rechargeable LED Flood Light for outdoor activities

Portable Rechargeable LED Flood Light for outdoor activities

When you come back lately in the evening, do you think it’s dark in your garage after you turn off your car ? This situation is even worse when there’s power off.

When you’re mending the car, do you think it’ll be better if there’s a handless lamp bright enough at the bottom of the car ?

How about the construction area? Sometimes the workers needs to work at night but no enough brightness to support. Forget about the halogen lamp, it’s much waste of light and energy, also the money.

Autumn comes, why not go out have a picnic ? If camp in the evening, let’s bring a portable flood light, bright enough. But how to make it work?

Portable rechargeable led flood light released! Forget all these troubles. Now with it, all problems gone. It’s portable and rechargeable, IP65 grade for outdoor use. Rechargeable led floodlight 5W,10W,20W,30W,50W with 3h,6h,8h emergency working time to meet different application demands. With COB led source, 10W can replace 100W halogen lamp and >40,000 hours life span while halogen lamp is only 1000hours. IP65 grade to protect it from the damage even in the rain.

Rechargeable portable flood light will bring people more convenient and eco-friendly life!

2013年7月30日星期二

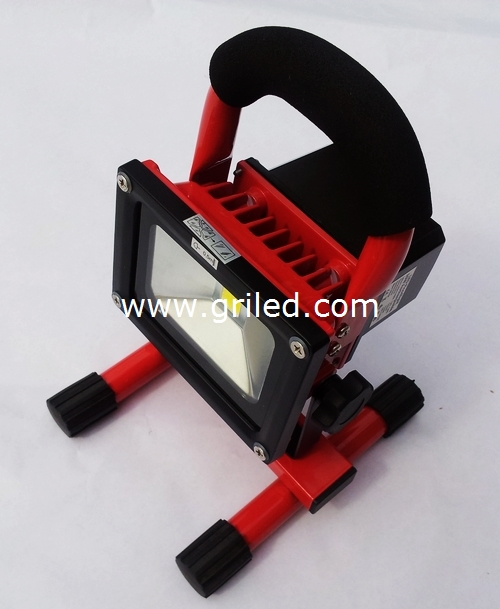

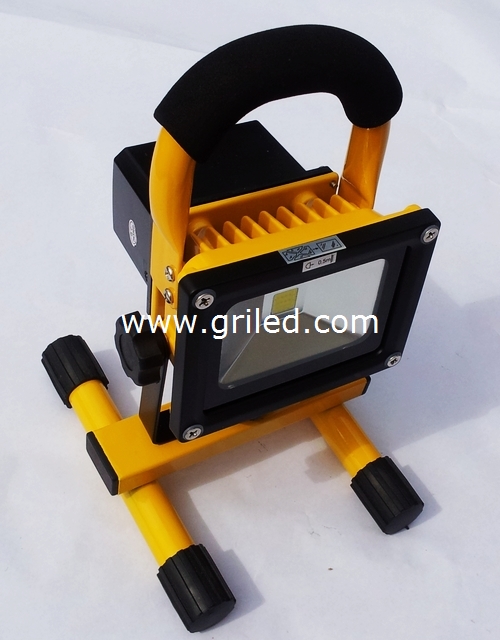

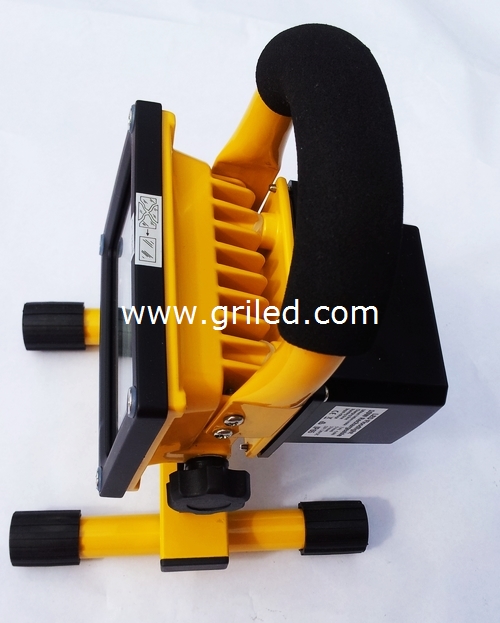

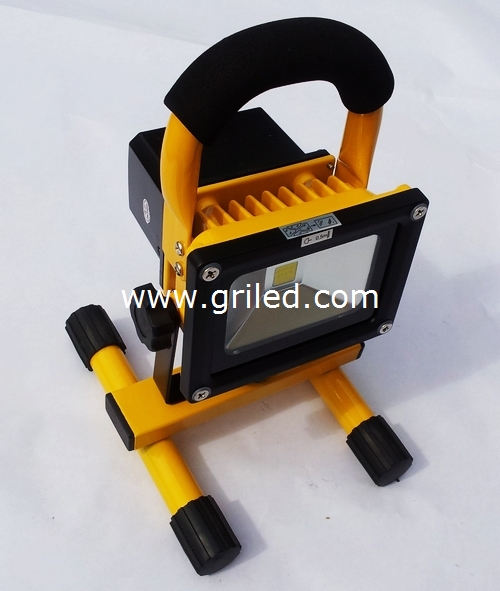

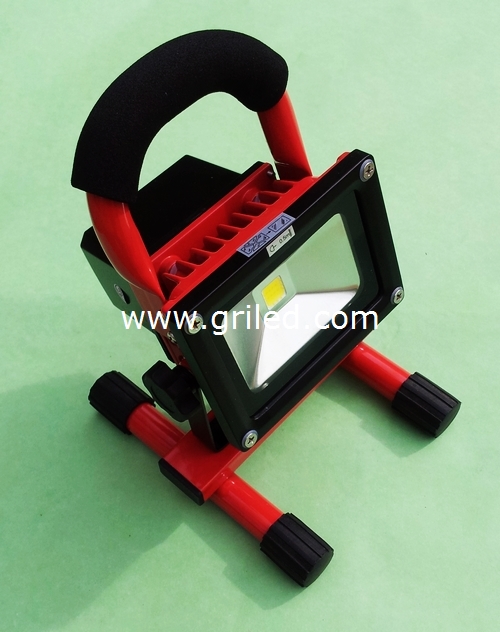

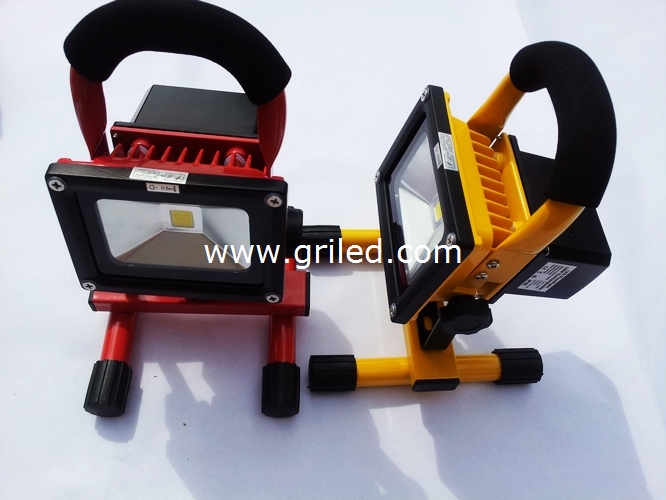

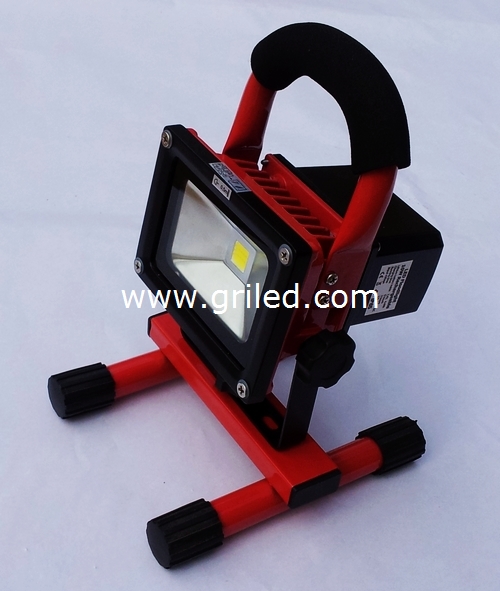

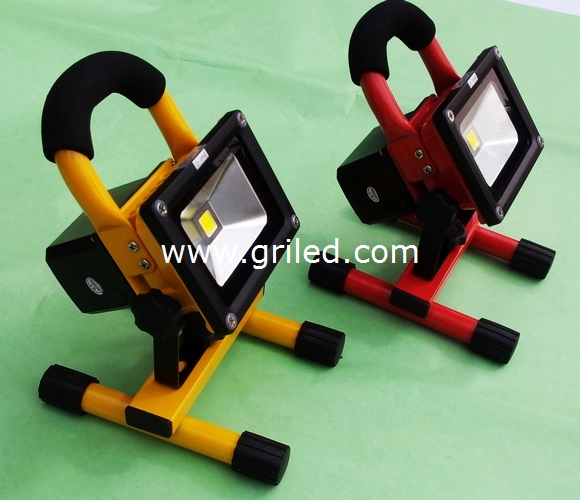

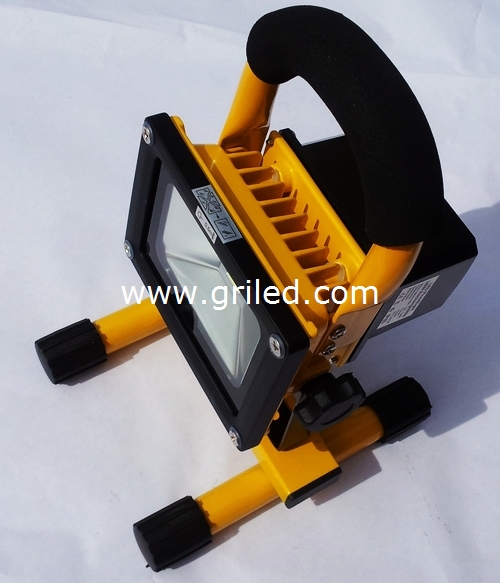

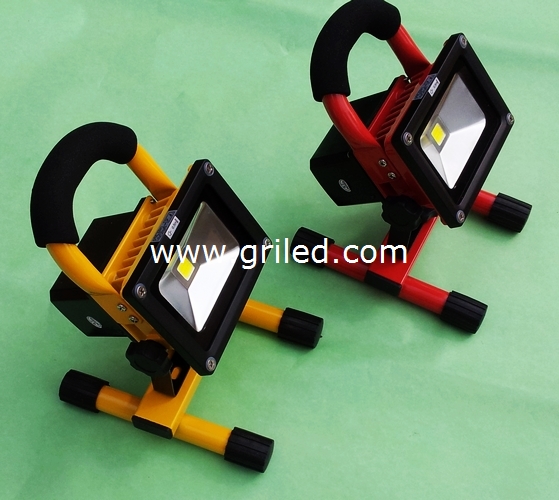

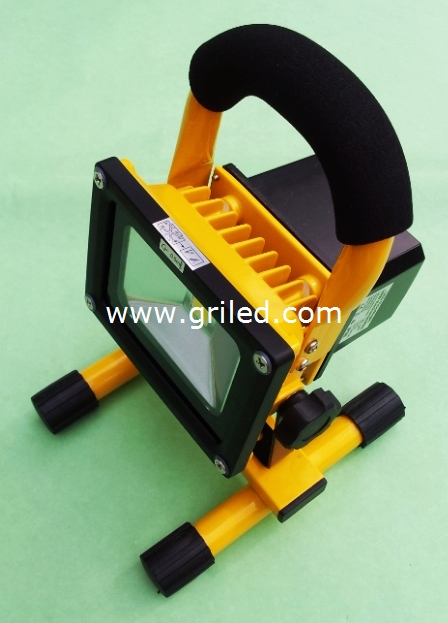

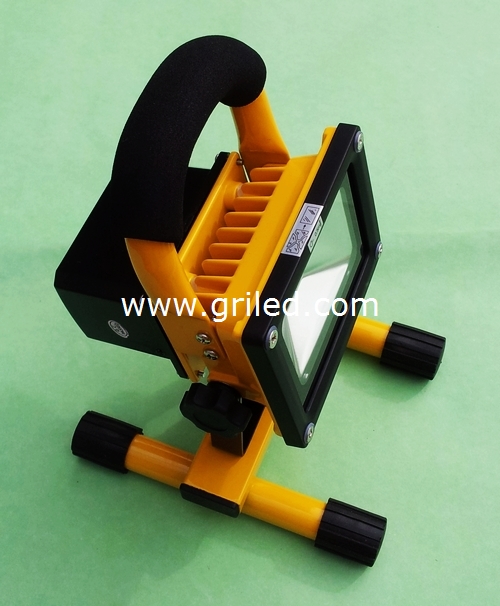

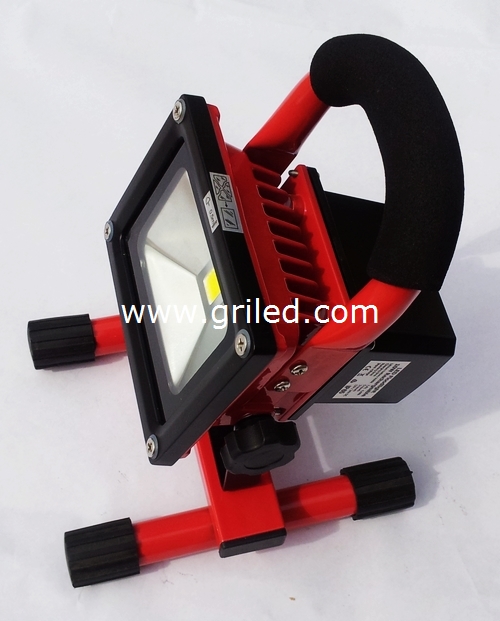

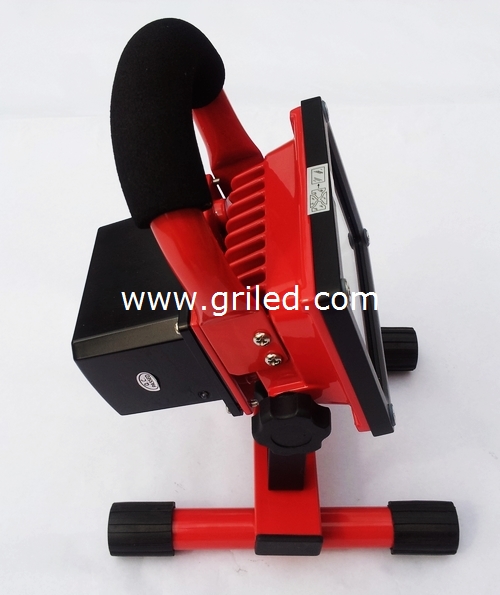

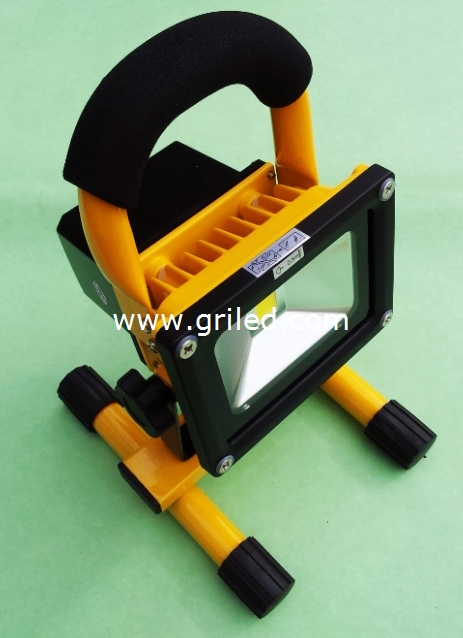

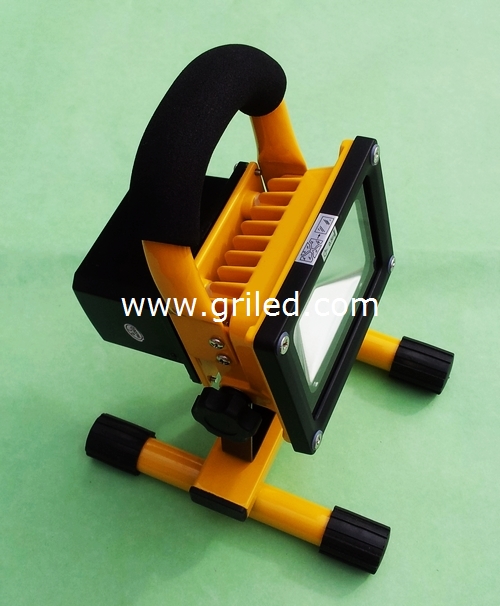

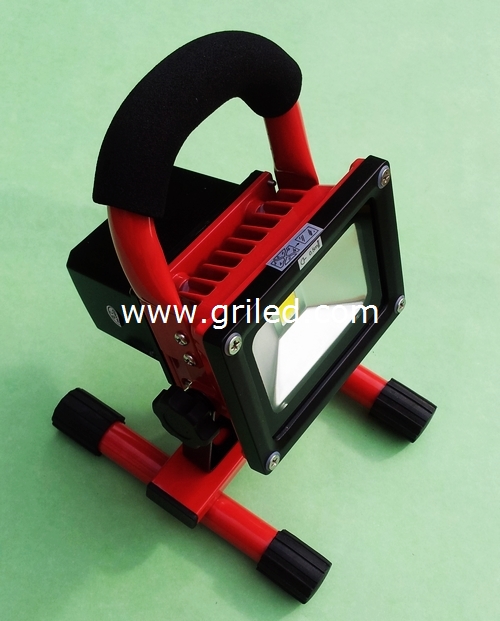

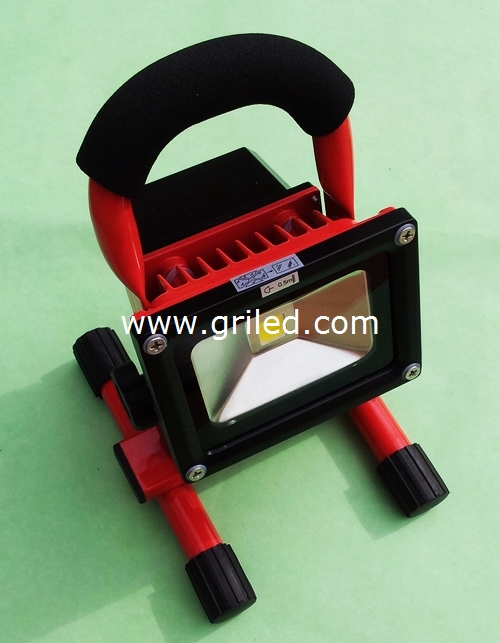

Portable Rechargebale LED Flood Light 10W: www.griled.com

Portable Rechargebale LED Flood Light 10W, Portable Emergency LED Flood Light, Chargeable led flood light, Portable led work light, Emergency LED Flood Light:

Model No.: ECO-FL-10W-EMG-3H

Beam Angle: 120 degree

Wattage: 10W

IP Rate: IP65

LED Source: 1*10W Epistar LED

Humidity: 10%-90%

Lumen Flux: 800-1000lm

Li-ion Battery: 7.4V, 4.4Ah

Working Voltage: DC12V/24V

Charging Time: 5hours

CCT: 2800-3500K;4000-5000K,5500-7000K

Working Time: 3 hours
